Bag QTY
2-24Filter Area
1-12Max Flow

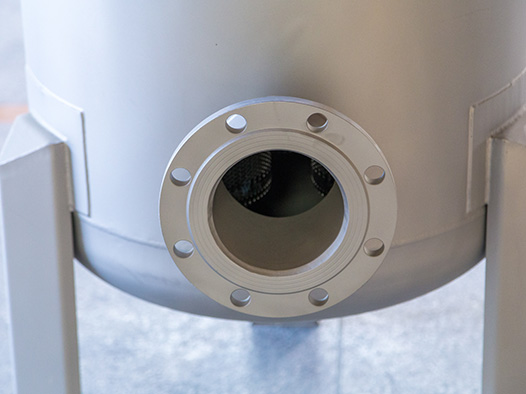

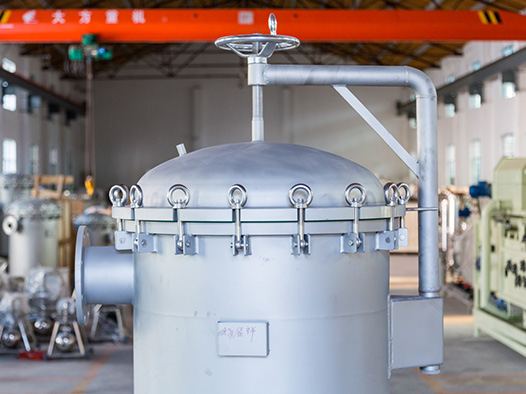

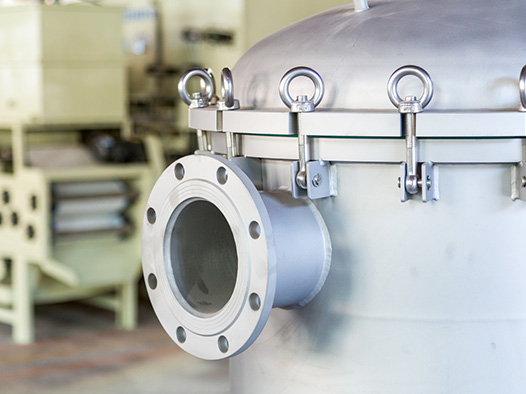

70-840t/hJacket bag filter housing. It has double-layer structure.There is a layer of heat preservation on the outside of the vessel, and the layer has an inlet and an outlet, steam or hot water or heat transfer oil can be passed into the jacket for circulation. It maintains or increases the temperature of the fluid in the filter vessel, prevent the fluid from crystallizing and solidifying due to the temperature drop, and improve the filtration speed of viscous liquids.
The equipment is widely used in: Chemical, food, beverage, pharmacy and other industries for rough and fine filtration, and it performs steam heating or condensation cooling for filter suspension with high viscosity or requiring heat preservation.
| Model | Bag QTY | Filter Area（㎡） | Max Flow（t/h） | Inlet/Outlet | Heating Inlet/Outlet | Working Pressure(Mpa) | Housing Diameter(mm) | Total Heigh（mm） | Housing Height（mm） | Center Distance of Foundation Bolts（mm） |
| DL-2P2S | 2 | 1 | 70 | DN65 | DN25 | 0.5 | 456 | 1572 | 1144 | 696 |
| DL-3P2S | 3 | 1.5 | 105 | DN80 | DN25 | 508 | 1592 | 1190 | 748 | |
| DL-4P2S | 4 | 2 | 140 | DN100 | DN25 | 558 | 1632 | 1244 | 798 | |
| DL-5P2S | 5 | 2.5 | 175 | DN150 | DN25 | 608 | 1788 | 1254 | 848 | |
| DL-6P2S | 6 | 3 | 210 | DN150 | DN25 | 658 | 1854 | 1300 | 898 | |
| DL-7P2S | 7 | 3.5 | 245 | DN150 | DN25 | 710 | 1875 | 1340 | 950 | |
| DL-8P2S | 8 | 4 | 280 | DN150 | DN25 | 760 | 1922 | 1404 | 1000 | |
| DL-10P2S | 10 | 5 | 350 | DN200 | DN32 | 910 | 2004 | 1430 | 1170 | |
| DL-12P2S | 12 | 6 | 420 | DN200 | DN32 | 962 | 2064 | 1460 | 1232 | |
| DL-14P2S | 14 | 7 | 490 | DN200 | DN32 | 1012 | 2124 | 1490 | 1312 | |
| DL-16P2S | 16 | 8 | 560 | DN250 | DN32 | 1112 | 2146 | 1512 | 1412 | |
| DL-18P2S | 18 | 9 | 630 | DN250 | DN32 | 1162 | 2225 | 1595 | 1462 | |
| DL-20P2S | 20 | 10 | 700 | DN250 | DN32 | 1212 | 2280 | 1640 | 1512 | |
| DL-22P2S | 22 | 11 | 770 | DN250 | DN32 | 1366 | 2320 | 1694 | 1616 | |
| DL-24P2S | 24 | 12 | 840 | DN300 | DN32 | 1416 | 2358 | 1748 | 1716 |
As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.
After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.
Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.
We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
