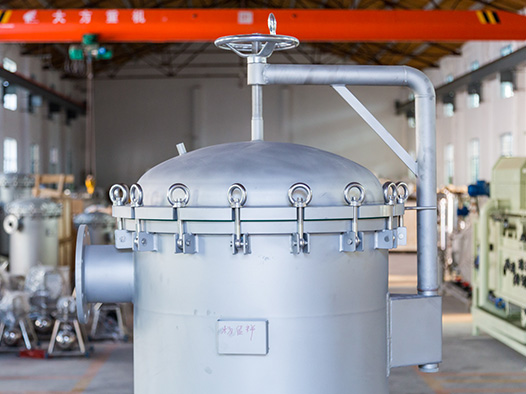

Multi-bag Filter
  • Filter Area

    50-500㎡
  • Plate Quality

    28-123
  • Filter volume

    736-8735L
Leave Message For Price Inquiry Online

Product Description

bag filter, includes single bag filter or multi-bags filter, all of them are enclosed filter and based on pressure filtration principle.

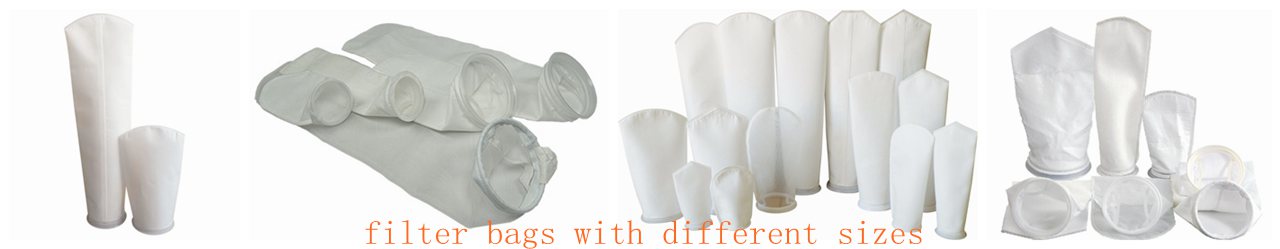

There are three parts involved in this type of filtration system: filtering container, supporting basket and filter bag. The filtrate liquid be sent into the machine from top of filtration bag which supported by supporting basket, so that the solid-liquid mixture could distribute in average and an even surface, for fine filtration.

Application: widely used in food, wine, beer, juice, fine chemicals, medicine, petroleum, pharmaceutical, beverage and other industries for solid-liquid separation and liquid filtration.


Advantages of Bag Filter Housing

The bag filter has many advantages such as reasonable structure, good sealing, strong circulation ability, and easy operation.

The probability of side leakage of the filter bag is small, which effectively guarantees the filtering quality.

it can bear greater working pressure, with small pressure loss, low operating cost, energy saving.

The filter accuracy has reached 0.5μm. small volume and large processing capacity.

it is convenient and quick to replace the filter bag, and the filter is free of cleaning, saving labor and time.

It can be used repeatedly after cleaning, saving cost.

It has a wide range of applications, flexible use and various installation methods.

Click to expand to view the data
Technical Parameters
Model Bag QTY Filter Area(㎡) Max Flow(t/h) Caliber(mm) Working Pressure(Mpa) Cylinder diameter(φ) Total Heigh(mm) Housing Height(mm) Center Distance of Foundation Bolts(mm)
DL-2P2S 2 1 70 DN50 0.5 456 1572 1144 616
DL-3P2S 3 1.5 105 DN80 508 1592 1190 668
DL-4P2S 4 2 140 DN100 558 1632 1244 718
DL-5P2S 5 2.5 175 DN150 608 1788 1254 768
DL-6P2S 6 3 210 DN150 658 1854 1300 818
DL-7P2S 7 3.5 215 DN150 710 1875 1340 870
DL-8P2S 8 4 280 DN150 760 1922 1404 920
DL-10P2S 10 5 350 DN200 910 2004 1430 1070
DL-12P2S 12 6 420 DN200 962 2064 1460 1132
DL-14P2S 14 7 490 DN200 1012 2124 1490 1212
DL-16P2S 16 8 560 DN250 1112 2146 1512 1312
DL-18P2S 18 9 630 DN250 1162 2225 1595 1362
DL-20P2S 20 10 700 DN250 1212 2280 1640 1412
DL-22P2S 22 11 770 DN250 1366 2320 1694 1516
DL-24P2S 24 12 840 DN300 1416 2358 1748 1616
