Bag Filter
  • Filtering Area

    0.2-12㎡
  • Bag Quantity

    1-24
  • Max Flow

    10-840t/h
Leave Message For Price Inquiry Online

Product Description

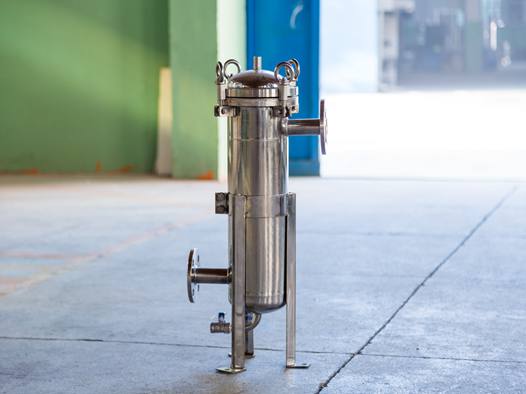

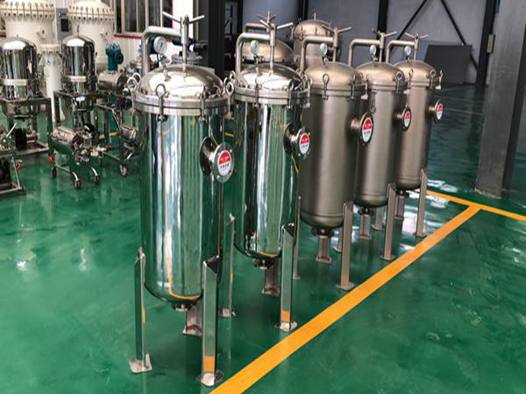

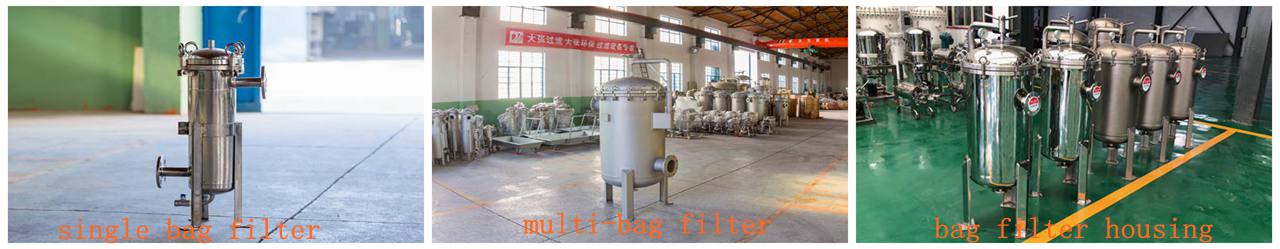

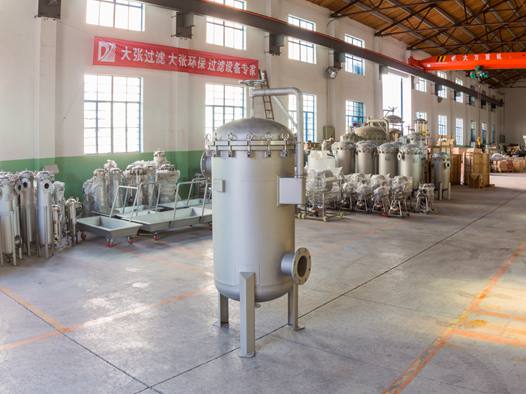

Bag filter is used for fine filtration of liquid and solid-liquid mixture with lower solid content. The filtration area is 0.2-12㎡. From the structure, it includes single bag filter and multi-bags filter; from the material, bag filter includes stainless steel type and pp type. All of them are enclosed filter and based on pressure filtration principle.

There are three parts involved in this type of filtration system: filtering container, supporting basket and filter bag. The filtrate liquid be sent into the machine from top of filtration bag which supported by supporting basket, so that the solid-liquid mixture could distribute in average and an even surface, for fine filtration.

Application: widely used in food, wine, beer, juice, fine chemicals, medicine, petroleum, pharmaceutical, beverage and other industries for solid-liquid separation and liquid filtration.

We provide full models bag filter,filter bags with different size and bag filter housing. If you have any needs, please feel free to contact us.


Advantages of Bag Filter Housing

High capacity, small size.

Easy to replace the filter bag, filter no need cleaning, time and labor saving.

The filter bag can be used repeatedly, saving cost.

Filtration precision can be reached 0.5μm.

Lower leakage risk, guaranteeing the filtration quality.

High working pressure, low pressure loss, low operation cost.

Wide application, flexible use, various installation models for choice.

Click to expand to view the data
Technical Parameters
Model Bag QTY Filter Area(㎡) Max Flow(t/h) Caliber(mm) Working Pressure(Mpa) Cylinder diameter(φ) Total Heigh(mm) Housing Height(mm) Center Distance of Foundation Bolts(mm)
DL-2P2S 2 1 70 DN50 0.5 456 1572 1144 616
DL-3P2S 3 1.5 105 DN80 508 1592 1190 668
DL-4P2S 4 2 140 DN100 558 1632 1244 718
DL-5P2S 5 2.5 175 DN150 608 1788 1254 768
DL-6P2S 6 3 210 DN150 658 1854 1300 818
DL-7P2S 7 3.5 215 DN150 710 1875 1340 870
DL-8P2S 8 4 280 DN150 760 1922 1404 920
DL-10P2S 10 5 350 DN200 910 2004 1430 1070
DL-12P2S 12 6 420 DN200 962 2064 1460 1132
DL-14P2S 14 7 490 DN200 1012 2124 1490 1212
DL-16P2S 16 8 560 DN250 1112 2146 1512 1312
DL-18P2S 18 9 630 DN250 1162 2225 1595 1362
DL-20P2S 20 10 700 DN250 1212 2280 1640 1412
DL-22P2S 22 11 770 DN250 1366 2320 1694 1516
DL-24P2S 24 12 840 DN300 1416 2358 1748 1616


Full Service System

As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
