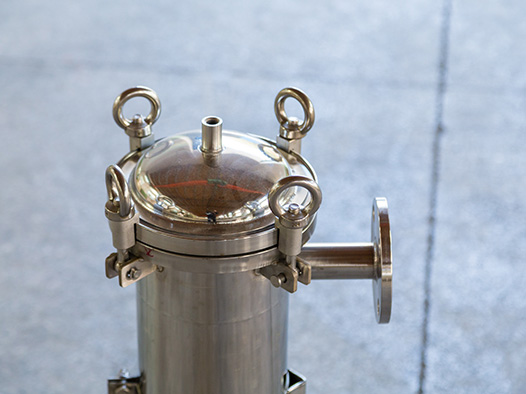

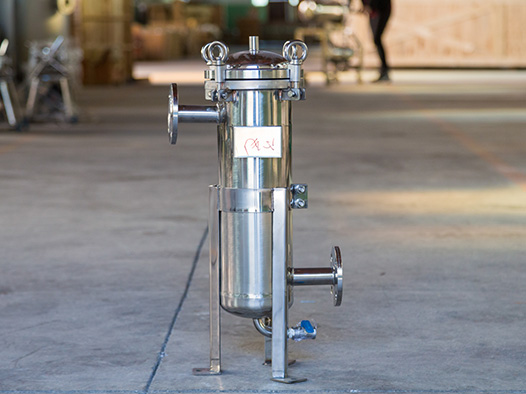

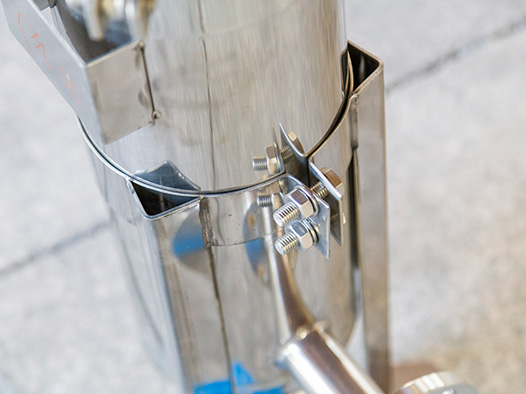

Single Bag Filter
  • Filtering Area

  • Volume

  • Material

    Stainless steel
Leave Message For Price Inquiry Online

Product Description

The single bag filter is a new type of filtration system. The filter bag is supported by a metal basket inside the filter. The liquid flows in from the inlet and flows out from the outlet after filtering by the filter bag. The impurities are trapped in the filter bag and the bag filter can continue to be used after changing the filter bag. It is very convenient to change the filter bag, no material consumption and low operation cost.

Equipment is widely used in: chemical, pharmaceutical, automotive, light industry, food, electroplating and other industries

Click to expand to view the data
Technical Parameters
Model Filtering Area(㎡) Max Flow(t/h) Working pressure(Mpa) Volume(L) Inlet/Outlet Connection Housing Diameter( Total Heigh( Housing Heisght(
01# 0.25 20 0.5 8 DN40 220 220 568
02# 0.5 40 0.5 17 DN50 220 220 960
04# 0.2 10 0.5 4 DN32 159 159 568

Full Service System

As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
