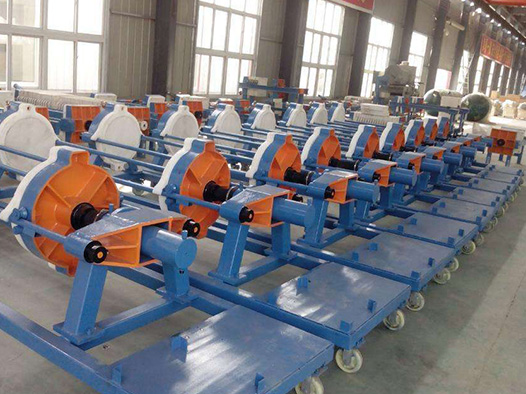

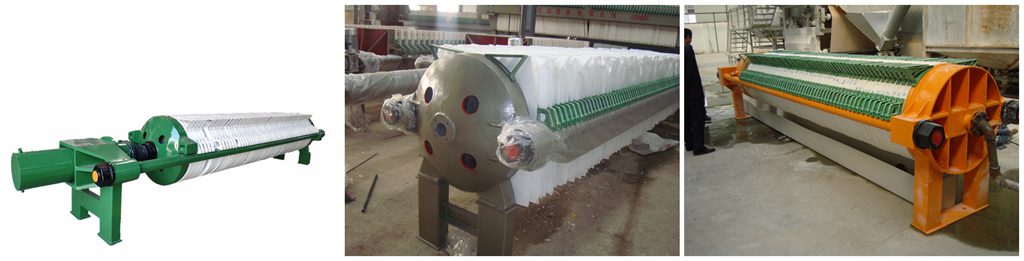

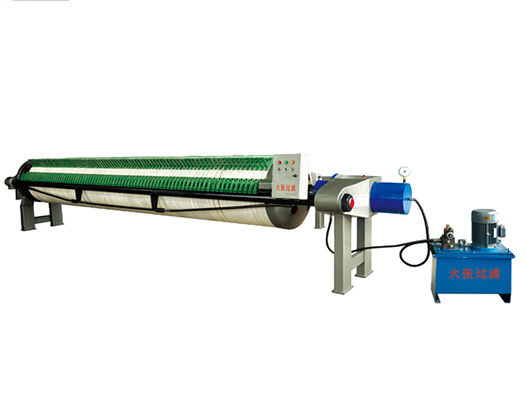

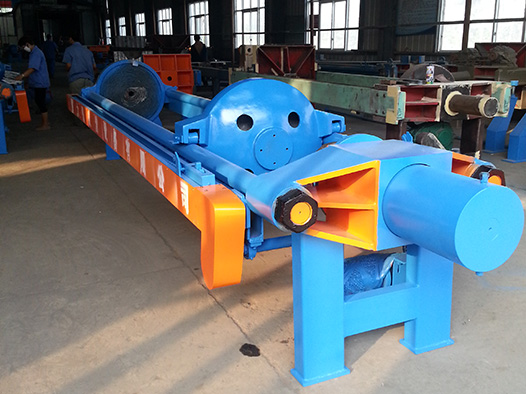

Round Plate Filter Press
  • Filter Area

  • Plate Quality

  • Filter volume

Leave Message For Price Inquiry Online

Product Description

Widely used in: stone waste water, ceramics, kaolin, bentonite, active clay, building materials and other industry. Features: 1. Adopt round filter plate design, it has the advantages of stable operation, high feed pressure and low cake moisture. 2. It is made of high-strength and high-toughness polypropylene with high compressive strength. 3. The filter chamber adopts linear seal, which has good sealing performance and high pressure resistance.Mainly used for high pressure filtration including clay, porcelain, petroleum dewaxing, etc.

Click to expand to view the data
Technical Parameters
Model Filter press(m2) Plate size(mm) Cake thickness(mm) Filter chamber volume(L) Plate NO(pcs) Filtration pressure(Mpa) Weight(Kg) Dimensions L*W*H(mm) Foundation Size(mm)
X20/∅800-25 20 Ø800 25 255 20 1.0-1.2 3346 3300*1100*1060 2300 530 1050
X30/∅800-25 30 377 30 3590 3780*1100*1060 2980
X40/∅800-25 40 499 40 4554 4300*1100*1060 3500
X50/∅800-25 50 621 50 5150 4820*1100*1060 4020
X60/∅800-25 60 753 60 9710 5340*1100*1060 4540
X70/∅800-25 70 875 70 5760 5860*1100*1060 5580
X80/∅800-25 80 1000 80 6860 6200*1100*1060 5660

Full Service System

As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
