Products

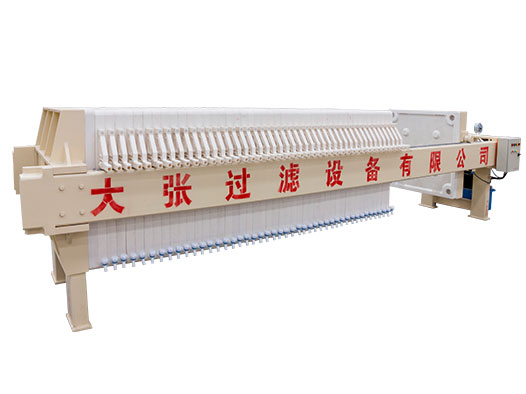

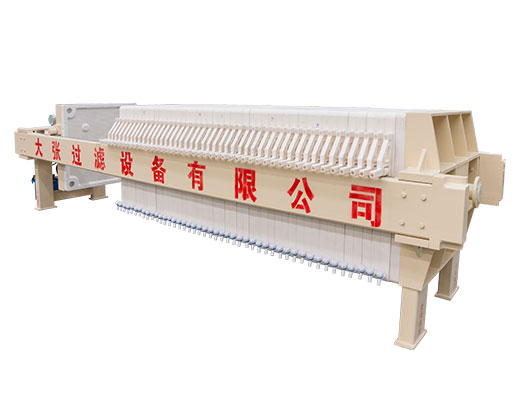

Plate and Frame Filter Press
  • Filter Area

    50-500㎡
  • Plate Quality

    28-123
  • Filter volume

    736-8735L
Leave Message For Price Inquiry Online

Product Description

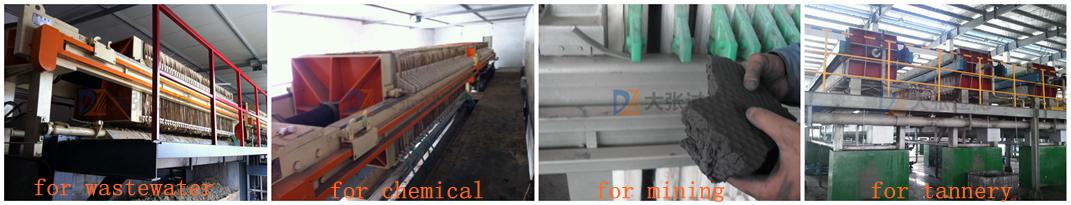

1.Plate and frame filter press is a kind of industial machine used for solid-liquid separation process, which is widely used in many industries, such as food (vegetable oil, sugar, juice, etc.), mining (tailing sewage), washing plant (sand, coal, etc.), chemistry, wastewater treatment plants, refining, electroplating, power plant, chemical, and other many industries.

2.How does plate and frame filter press work: the liquid to be filtered enters each filter chamber from the feed hole at the end of the compressed top plate through the feed pump under a certain pressure, and the solid matter is trapped in the filter chamber through the filter cloth, and gradually forms a filter cake; the liquid is discharged out of the machine through the water outlet hole on the plate frame. As the filtration process progresses, the filter cake filtration begins, the thickness of the mud cake gradually increases, and the filtration resistance increases. When the filter cake reaches a certain thickness or fills the whole frame, the filtration is stopped.

3.As leading filter press manufacturer and supplier with 16 years experience in China, we have types of filter press for sale, mainly including chamber filter press, membrane filter press, belt filter press, plate and frame filter press, stainless steel filter press, etc.


Advantages of Plate and Frame Filter Press

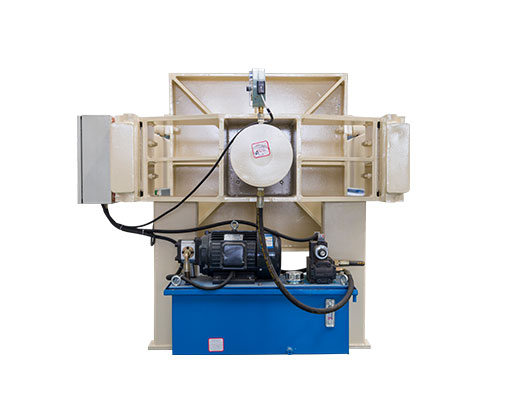

Manual and hydraulic type for choice, meeting small, medium and large production needs.

Compact structure, CE &ISO qualified, stable performance, high efficiency and low operating cost.

Long service life, wide application. Reduce moisture content to meet standard.

Factory-direct sale, fast delivery and shipping, full service.

Greatly reduce the moisture content, save drying costs and improve production yield.

High-pressure press will greatly shorten the entire filtration cycle.

It can save operation power consumption,saving costs.

Each type of filter press has small and large models for choice, meeting different needs. Professional team provide customized solution according to your needs. Our filter press has been exported to over 120 countries, hot sale in Indonesia, Phillipine, Malaysia, Singapore, Thailand, Vietnam, Pakistan, South Africa, Kenya, Russia, etc. More projects all over the world.

Need Customized Solution?
Tell Us Your Needs
Click to expand to view the data
Technical Parameters
Model Filter press(m2) Plate size(mm) Cake tdickness(mm)  Filter chamber volume(L) Plate NO(pcs) Number frame(pcs)  Filtration pressure(Mpa) Motor power(Kw)  Weight(Kg) Dimensions L*W*H(mm) Foundation Size(mm)
L B D H C
BY4/450-30U 4 500*500 30 60 9 10 ≤0.5 2.2 860 2080*800*900 1570 390 800 560 450
BY6/450-30U 6 500*500 30 91 14 15 ≤0.5 2.2 910 2380*800*900 1870 390 800 560 450
BY8/450-30U 8 500*500 30 121 19 20 ≤0.5 2.2 960 2680*800*900 2170 390 800 560 450
BY10/450-30U 10 500*500 30 151 24 25 ≤0.5 2.2 1010 2980*800*900 2470 390 800 560 450
BY12/450-30U 12 500*500 30 182 29 30 ≤0.5 2.2 1060 3280*800*900 2770 390 800 560 450
BY15/450-30U 15 500*500 30 225 36 37 ≤0.5 2.2 1130 3700*800*900 3190 390 800 560 450
BY16/450-30U 16 500*500 30 243 39 40 ≤0.5 2.2 1160 3880*800*900 3370 390 800 560 450
BY16/450-30U 15 700*700 30 226 18 19 ≤0.5 2.2 1725 2840*1000*1100 2170 560 1110 700 485
BY20/630-30U 20 700*700 30 297 24 25 ≤0.5 2.2 1993 3200*1000*1100 2530 560 1110 700 485
BY30/630-30U 30 700*700 30 452 37 38 ≤0.5 2.2 2360 3980*1000*1100 3310 560 1110 700 485
BY40/630-30U 40 700*700 30 595 49 50 ≤0.5 2.2 2788 4800*1000*1100 4130 560 1110 700 485
BY30/890-35U 30 890*890 35 524 23 24 ≤0.5 2.2 2580 3740*1385*1300 2750 700 1270 759 480
BY40/890-35U 40 890*890 35 677 30 31 ≤0.5 2.2 2925 4220*1385*1300 3240 700 1270 759 480
BY50/890-35U 50 890*890 35 852 38 39 ≤0.5 2.2 3318 4880*1385*1300 3890 700 1270 759 480
BY60/890-35U 60 890*890 35 1027 46 47 ≤0.5 2.2 3712 5440*1385*1300 4450 700 1270 759 480
BY70/890-35U 70 890*890 35 1201 54 55 ≤0.5 2.2 4106 6000*1385*1300 5010 700 1270 759 480
BY80/890-35U 80 890*890 35 1376 62 63 ≤0.5 2.2 4561 6560*1385*1300 5570 700 1270 759 480


Full Service System

As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
