Equipment air volume
5000-50000 m³/hModels
full modelsPrice

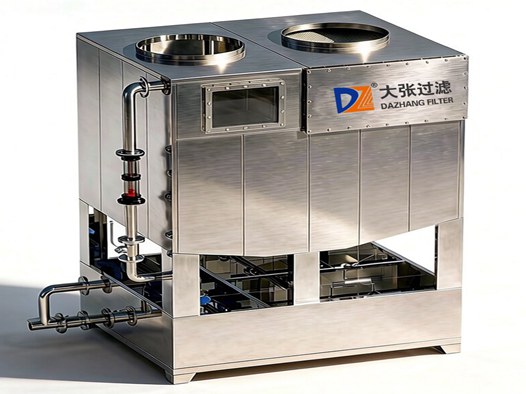

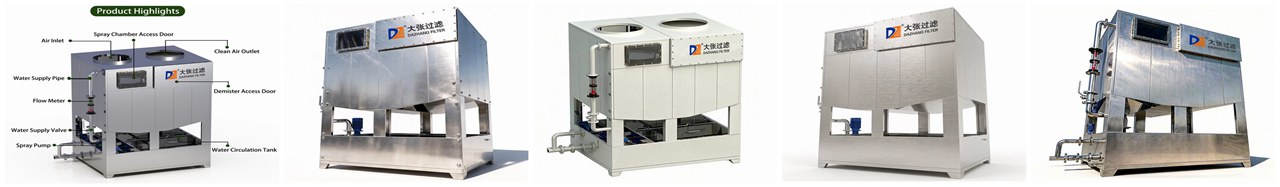

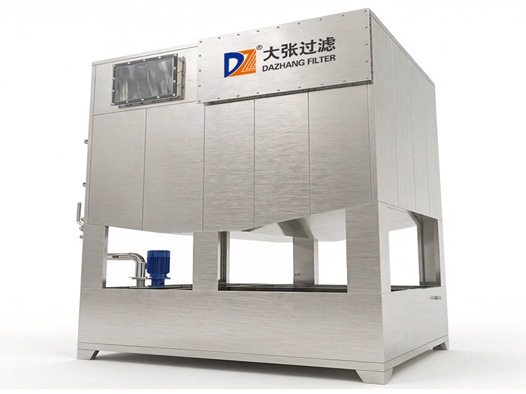

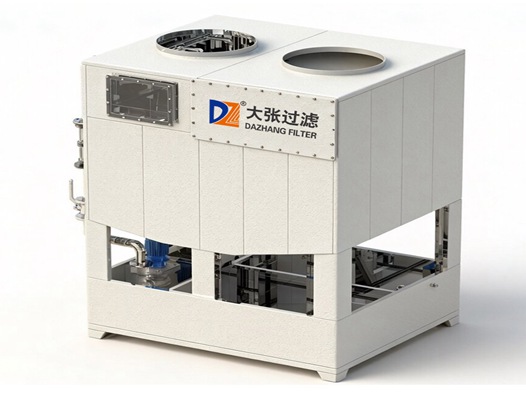

factory priceThe Water Cyclone Spray Tower is a novel, high-efficiency wet-type filtration system independently developed by our company.Utilizing "water-cyclone scrubbing" as its core filtration principle, this system is characterized by its high efficiency and practical utility, making it widely applicable across various industrial scenarios involving dust removal, smoke elimination, and waste gas scrubbing. It serves as an upgraded alternative to traditional spray towers. The housing materials include stainless steel, galvanized steel, and carbon steel; we can provide customized services based on your specific requirements.
How Does Water Cyclone Spray Tower Work
Water Cyclone Spray Tower Uses water as the medium, the system employs a three-stage integrated filtration principle to scrub and filter exhaust gas. First stage: Spray filtration is used for preliminary scrubbing of the exhaust gas. Second stage: Water vortex filtration is applied to achieve the most thorough water-to-gas filtration and scrubbing effect. Third stage: Gas-water mixing scrubbing is adopted to continue and enhance the atomization mixing effect. The gas that has undergone the three-stage integrated filtration then passes through combined filtration with Pall ring packing and a baffle plate (moisture eliminator) to achieve gas-water separation, ensuring that the outgoing air is free of water carryover.

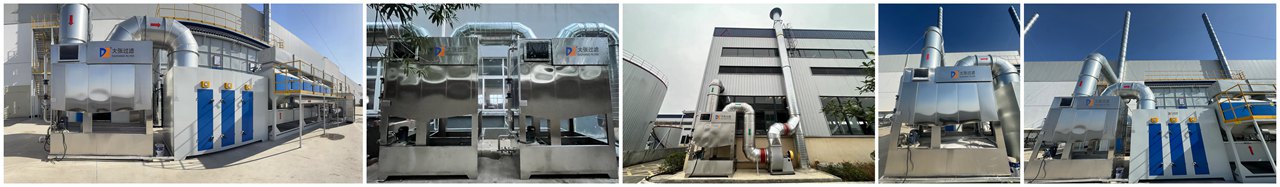

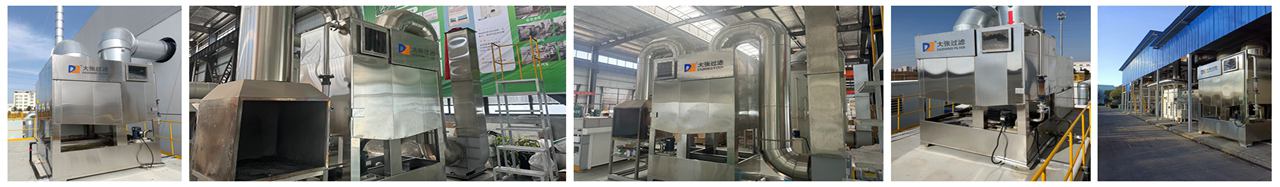

Main Application of Water Cyclone Spray Tower
Petroleum & Chemical: Refinery oil fume, oily sludge dust, chemical waste gas.
Mining & Metallurgy: Tailings dust, smelting flue gas, mineral processing dust.
Environmental Protection & Sludge Treatment: Filter press unloading dust, workshop dust removal.
Coating & Furniture: Paint mist purification.
Food & Palm Oil: Processing dust and oil mist.
Paper Making & Electroplating: Factory waste gas and sludge dust treatment.
Perfect Matching Solution: Filter Press + Water Cyclone Spray Tower. Filter Press → Solve sludge dewatering, reduce sludge moisture content. Water Cyclone Spray Tower → Solve dust pollution during sludge unloading, workshop environmental compliance, realize full closed-loop environmental protection treatment. One-stop package solution, zero workshop dust, full environmental standard compliance.
Zero Consumables: No filter bag, no activated carbon, no packing balls. Only circulating water needed, greatly reduce operation cost.
Never Block: Perfect for sticky paint mist, oil fume, wet sludge dust, viscous industrial flue gas.
High Purification Efficiency: Dust removal efficiency up to 95%–99%, effectively capture PM2.5 fine particles.
Fire & Explosion Proof: Full wet working mode, no open fire risk, much safer than bag dust collector.
Low Maintenance: Open water tank design, easy sludge cleaning, no frequent replacement parts.
| Model | Equipment air volume(m³/h) | Pump power(kw) | Dimension (L × W × H)mm | Air vent diameter(mm) | Equipment resistance (pa) |
| QFS-05 | 5000 | 0.75 | 1300×900×3000 | Φ350 | 850-1050 |
| QFS-10 | 10000 | 1.5 | 1700×1000×3000 | Φ500 | 850-1050 |
| QFS-15 | 15000 | 2.2 | 1900×1300×3000 | Φ600 | 850-1050 |
| QFS-20 | 20000 | 4 | 2000×1500×3200 | Φ700 | 750-950 |
| QFS-25 | 25000 | 4 | 2200×1800×3200 | Φ750 | 750-950 |
| QFS-30 | 30000 | 4 | 2400×2000×3200 | Φ850 | 750-950 |
| QFS-35 | 35000 | 5.5 | 2700×2000×3400 | Φ900 | 750-950 |
| QFS-40 | 40000 | 5.5 | 3000×2000×3400 | Φ950 | 700-900 |
| QFS-45 | 45000 | 7.5 | 3300×2000×3400 | Φ1000 | 700-900 |
| QFS-50 | 50000 | 7.5 | 3600×2000×3400 | Φ1050 | 700-900 |
As leading filter press manufacturer and supplier with over 20 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.
After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.
Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.
We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
