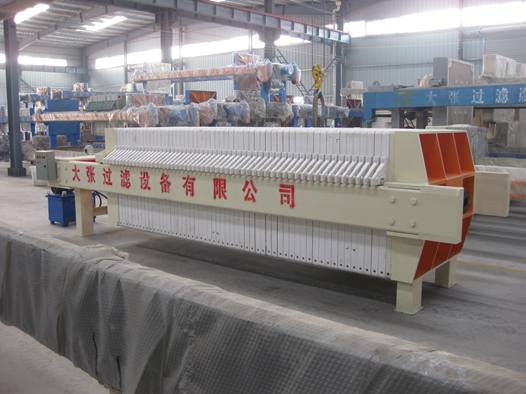

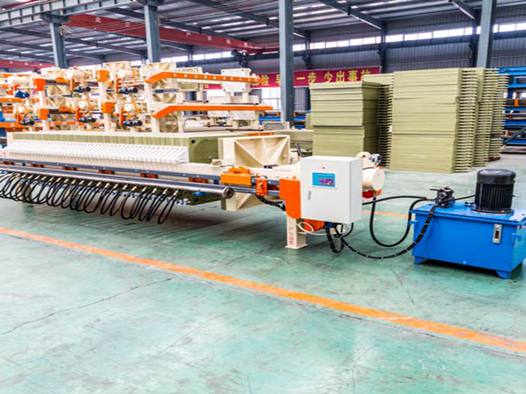

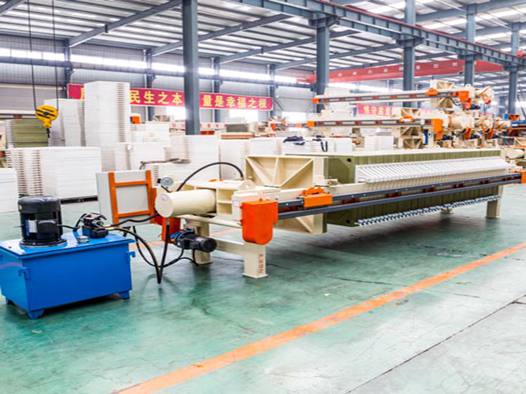

Mining Filter Press
  • Filter Area

    10-1000 ㎡
  • Plate Quality

    28-123
  • Filter volume

    736-8735L
Leave Message For Price Inquiry Online

Product Description

Mining filter press is mainly used for valuable metal recovery, sludge dewatering, closed water circulation, etc. Because of its high filtration efficiency, filtration accuracy, and low mud and moisture content, mining filter press is widely used in the global mining industry. We can provide a one-stop solution for you, including tailings filter press, dry stacking of filter residue, and return of filtrate and other prodecures.

Processing materials: copper ore, gold ore, iron ore, lead-zinc ore, stone wastewater, coal, titanium ore, tailings, slag, kaolin, ceramics and other non-ferrous and non-metallic ores.

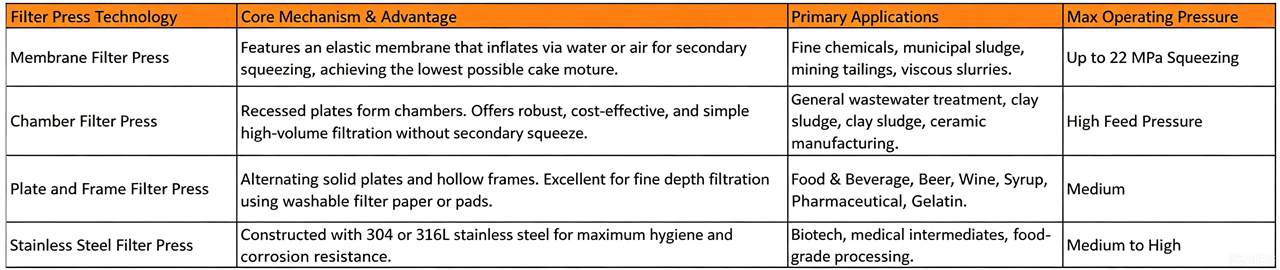

Commonly used mining filter press types: membrane filter press, belt filter press and plate and frame filter press, etc. Membrane filter press adopts secondary membrane pressing dehydration process, and the filter cake has low moisture; compared with other filtration and dehydration equipment, it has greater advantages in operating cost, energy consumption and unit capacity reliability, which is currently the mainstream equipment. At the same time, with the maturity of belt filter press technology, large belt filter presses have also been widely used to deal with the dewatering of tailings and concentrates.


Advantages of Mining Filter Press

Good sealing performance and large filtering area.

Easy for filter cloth loading and unloading, fast and safe.

The water content of the filter cake is low. Compared with the ordinary filter press, the water content is reduced by 5%-15%, and the filter cake will fall off automatically.

The filter cake is washed thoroughly and water saving 15%-20%.

The filtering speed is fast, and the thickness of the filter cake is uniform

Need Customized Solution?
Tell Us Your Needs
Click to expand to view the data
Technical Parameters
Model Filter press(m2) Plate size(mm) Cake tdickness(mm) Filter chamber volume(L) Plate NO(pcs) Filtration pressure(Mpa) Motor power(Kw) Weight(Kg) Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
XZ30/870-30U 30 870*870(Or)800*800 30 460 23 ≥0.6 2.2 2680 3180*1400*1230 2360 700 1380 785
XZ40/870-30U 40 870*870(Or)800*800 30 595 30 ≥0.6 2.2 3050 3570*1400*1230 2750 700 1380 785
XZ50/870-30U 50 870*870(Or)800*800 30 748 38 ≥0.6 2.2 3456 4110*1400*1230 3290 700 1380 785
XZ60/870-30U 60 870*870(Or)800*800 30 902 46 ≥0.6 2.2 4003 4550*1400*1230 3730 700 1380 785
XZ70/870-30U 70 870*870(Or)800*800 30 1056 54 ≥0.6 2.2 4584 4990*1400*1230 4170 700 1380 785
XZ80/870-30U 80 870*870(Or)800*800 30 1210 62 ≥0.6 2.2 5082 5430*1400*1230 4610 700 1380 785
XZ50/870-30U 50 1000*1000 30 736 28 ≥0.6 4 4128 4040*1500*1400 3120 780 1480 870
XZ60/870-30U 60 1000*1000 30 889 34 ≥0.6 4 4636 4460*1500*1400 3480 780 1480 870
XZ70/870-30U 70 1000*1000 30 1041 40 ≥0.6 4 5143 4760*1500*1400 3840 780 1480 870
XZ80/870-30U 80 1000*1000 30 1193 46 ≥0.6 4 5651 5120*1500*1400 4200 780 1480 870
XZ100/870-30U 100 1000*1000 30 1475 57 ≥0.6 4 6628 5780*1500*1400 4860 780 1480 870
XZ120/870-30U 120 1000*1000 30 1777 69 ≥0.6 4 7644 6500*1500*1400 5580 780 1480 870
XZ100/1250-30U 100 1250*1250 30 1468 36 ≥0.6 4 8307 5020*1800*1600 3970 850 1740 995
XZ120/1250-30U 120 1250*1250 30 1746 43 ≥0.6 4 9308 5470*1800*1600 4430 850 1740 995
XZ140/1250-30U 140 1250*1250 30 2063 51 ≥0.6 4 10455 5990*1800*1600 4950 850 1740 995
XZ160/1250-30U 160 1250*1250 30 2341 58 ≥0.6 4 11492 6450*1800*1600 5400 850 1740 995
XZ180/1250-30U 180 1250*1250 30 2619 65 ≥0.6 4 12494 6905*1800*1600 5860 850 1740 995
XZ200/1250-30U 200 1250*1250 30 2896 72 ≥0.6 4 13504 7360*1800*1600 6310 850 1740 995
XZ220/1250-30U 220 1250*1250 30 3214 80 ≥0.6 4 14652 7880*1800*1600 6830 850 1740 995
XZ250/1250-30U 250 1250*1250 30 3650 91 ≥0.6 4 16227 8600*1800*1600 7550 850 1740 995
XZ200/1500-35U 200 1500*1500 35 2998 49 ≥0.6 7.5 20030 6400*2200*1900 5250 1170 1990 1070
XZ250/1500-35U 250 1500*1500 35 3594 61 ≥0.6 7.5 22978 7225*2200*1900 6090 1170 1990 1070
XZ300/1500-35U 300 1500*1500 35 4347 74 ≥0.6 7.5 26026 8130*2200*1900 6990 1170 1990 1070
XZ350/1500-35U 350 1500*1500 35 5043 86 ≥0.6 7.5 29220 8950*2200*1900 7840 1170 1990 1070
XZ400/1500-35U 400 1500*1500 35 5796 99 ≥0.6 7.5 32574 9880*2200*1900 8750 1170 1990 1070
XZ450/1500-35U 450 1500*1500 35 6492 111 ≥0.6 7.5 35586 10690*2200*1900 9590 1170 1990 1070
XZ500/1500-35U 500 1500*1500 35 7187 123 ≥0.6 7.5 38606 11560*2200*1900 10430 1170 1990 1070
XZ600/2000-40U 600 2000*2000 40 8926 85 ≥0.6 15 49000 11100*3000*2500 9200 1660 2000 1050
XZ700/2000-40U 700 2000*2000 40 10380 99 ≥0.6 15 53000 12200*3000*2500 10300 1660 2000 1050
XZ800/2000-40U 800 2000*2000 40 11210 107 ≥0.6 15 57000 13350*3000*2500 11450 1660 2000 1050
XZ900/2000-40U 900 2000*2000 40 13290 127 ≥0.6 15 61000 14500*3000*2500 12600 1660 2000 1050
XZ1000/2000-40U 1000 2000*2000 40 14740 141 ≥0.6 15 65000 15600*3000*2500 15600 1660 2000 1050
