Manual Filter Press
  • Filter Area

    1-6 ㎡
  • Plate Quantity

  • Filter volume

Leave Message For Price Inquiry Online

Product Description

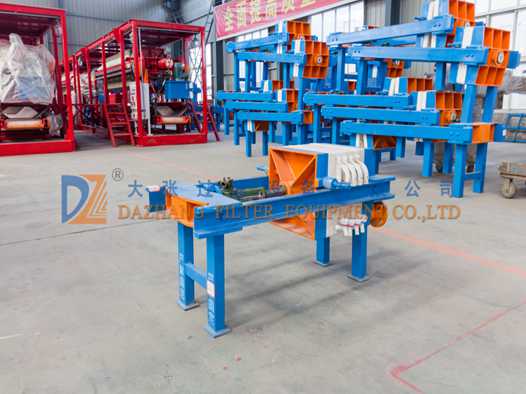

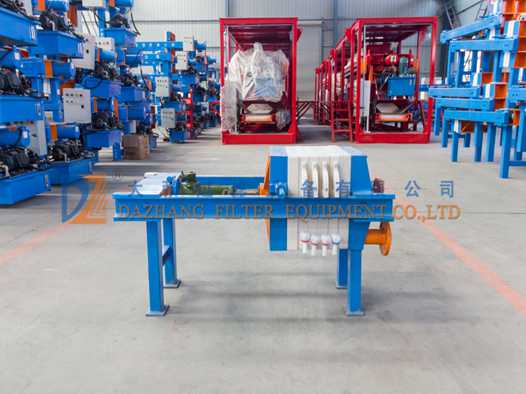

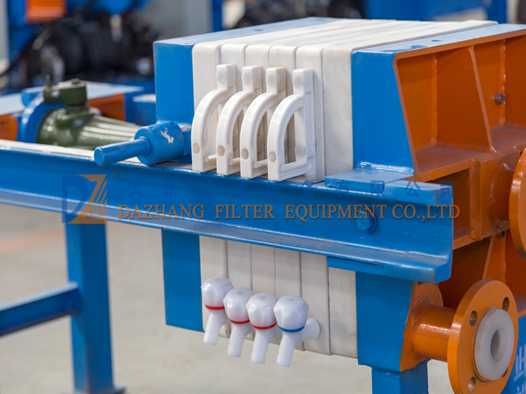

Manual filter press is a kind of intermittent pressure filter equipment, used for solid-liquid separation of various suspensions. It is widely used in petroleum, chemical, dye, metallurgy, pharmaceutical, food, papermaking and sewage treatment and other fields that require solid-liquid separation. It is suitable for small-scale filtration industries. Generally, the pressure is relatively low, and the filtration pressure is less than 0.4Mpa. The filter press is mainly composed of three parts, namely: the frame part, the filter part, and the compression device.

Working principle: the suspension is pumped into each closed filter chamber of the filter. Under the action of working pressure, the filtrate passes through the filter membrane or other filter materials and is discharged through the liquid outlet, while the filter residue is left in the frame, forming filter cake, thus achieving solid-liquid separation.
Advantages of Manual Filter Press

wide application, and it can be applied to various industries.

Better filtration effect, good sealing performance and long service life.

Short filtering cycle, which can complete the filtering work of the filtering material in a very short time, which saves a lot of operating costs and reduces the power consumption of the pump at the same time.

The moisture content of filter cake can meet the requirements, and it also has the function of secondary pressing and dehydration.


Full Service System

As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
