Filter Area
0.7-20㎡Plate Quality
0.22-100μmFlow

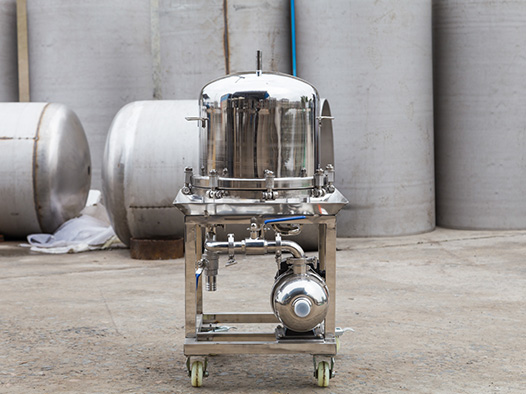

4-130t/hThe laminated precision filter is a newly developed precision liquid filtration equipment, which is manufactured by combining our company's years of practical experience in the production of filters. It has the characteristics of large filter area, fast speed and high efficiency. It is made of 304 and 316L stainless steel materials, with excellent technology, safe and stable performance, corrosion resistance, durability, novel structure, simple operation, flexible energy saving and strong adaptability. It is a multi-purpose filtration equipment.
It is widely used in chemical, pharmaceutical, fine food, biochemical and other industries of liquid filtration. It can increase the volume of the inner cavity for materials with higher solid content, so that more solid particles can be accommodated to meet actual needs. For filtering solvent materials, it can use fluorine rubber or fluorine-coated gaskets to prevent leakage.
| Model | Layer QTY | Filtering Area(㎡) | Filter Precision(um) | Filter Element Size(mm) | Flow(t/h) | Working Pressure(Mpa) | Power(kw) | Volume(L) |
| DZCD-300 | 10 | 0.7 | 0.22-100 | 306 | 4 | 0.2-0.4 | 0.75 | 3 |
| DZCD-300 | 14 | 1 | 306 | 6 | 0.75 | 3.2 | ||
| DZCD-300 | 20 | 1.4 | 306 | 8 | 1.1 | 6 | ||
| DZCD-300 | 30 | 2.1 | 306 | 12 | 1.5 | 9 | ||
| DZCD-300 | 40 | 2.8 | 306 | 16 | 2.2 | 12 | ||
| DZCD-400 | 14 | 1.75 | 406 | 10 | 2.2 | 13 | ||
| DZCD-400 | 20 | 2.5 | 406 | 14 | 2.2 | 15 | ||
| DZCD-400 | 30 | 3.75 | 406 | 21 | 2.2 | 20 | ||
| DZCD-400 | 40 | 5 | 406 | 28 | 3 | 30 | ||
| DZCD-500 | 20 | 3.9 | 506 | 25 | 4 | 35 | ||
| DZCD-500 | 40 | 7.8 | 506 | 50 | 4 | 70 | ||
| DZCD-550 | 20 | 4.75 | 566 | 35 | 4 | 40 | ||
| DZCD-550 | 40 | 9.5 | 566 | 70 | 4 | 80 | ||
| DZCD-600 | 20 | 5.6 | 606 | 35 | 5.5 | 100 | ||
| DZCD-600 | 40 | 11.2 | 606 | 70 | 5.5 | 200 | ||
| DZCD-700 | 20 | 7.6 | 706 | 45 | 5.5 | 120 | ||
| DZCD-700 | 40 | 15.2 | 706 | 90 | 7.5 | 240 | ||
| DZCD-800 | 20 | 10 | 806 | 65 | 5.5 | 180 | ||
| DZCD-800 | 40 | 20 | 806 | 130 | 7.5 | 300 |
As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.
After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.
Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.
We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
