Heavy Carbon Steel Belt Filter Press
  • Filter Area

  • Plate Quality

  • Filter volume

Leave Message For Price Inquiry Online

Product Description

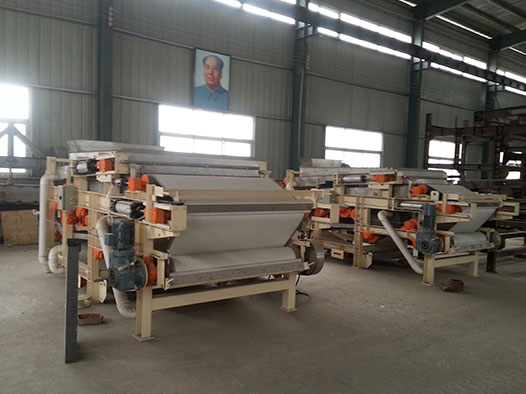

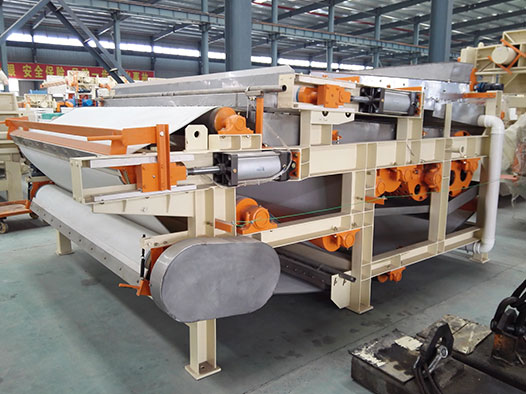

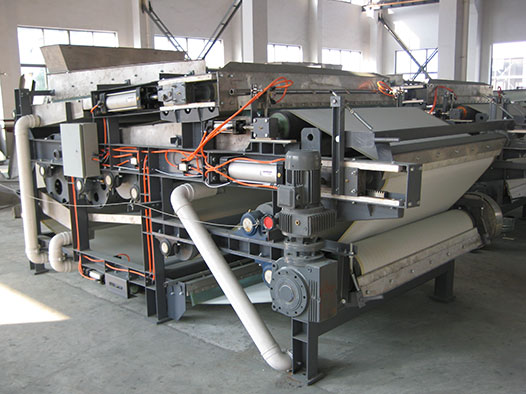

The heavy carbon steel belt press dehydrator adopts advanced technology, and has beautiful appearance and solid structure, high rigidity, stable operation and low noise. Continuous operation from feeding to discharging cakes, with high degree of automation, PLC interface can be set according to customerss' needs, which is convenient for centralized control by microcomputer. Filter belts of different specifications and models can be configured according to different materials, and with high filtration precision.

It is widely used in print&dyeing, mineral slurry, municipal wastewater treatment, food industry, petroleum etc.

Need Customized Solution?
Tell Us Your Needs
Click to expand to view the data
Technical Parameters
Model Belt Width(mm) Capacity(m3/h)Feed concentration(Solid content 1.5-2.5%) Dry Solid(kg/hr) Cake Moisture(%) Power(%) Reference Dimensions(mm) Weight(kgs)
DY750 750 6-9 110-225 63-84.5 1.5 4250 1630 2100 2570
DY1000 1000 8-12 150-300 1.5 4250 1880 2100 2920
DY1500 1500 12-18 225-450 1.5 4250 2380 2100 3590
DY2000 2000 16-24 300-600 2.2 4250 2920 2100 4490
DY2500 2500 20-30 375-750 2.2 4250 3420 2100 5520
DY3000 3000 28-38 420-950 2.2 4250 3920 2100 6220

Full Service System

As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
