Filter Area
3-1000 ㎡Models
full modelsPrice
factory priceIndustrial Filter Press Solutions for the Philippines.Trusted Partner for Food Processing, Mining, Construction & Manufacturing Industries.
With 20+ years of experience, we provide high-performance solid-liquid separation equipment and wastewater treatment solutions. Backed by technical support, spare parts inventory and fast delivery.
Filter Press for Main Industry Solutions in Philippines
1.Food & Beverage Processing--Sanitary Filtration for Coconut, Sugar, Juice & Starch Production
Applications: sugar juice clarification, starch slurry dewatering, fruit juice polishing, sauce filtration.
Stainless steel contact parts, hygienic design for food safety.
2.Mining & Mineral Processing--Heavy-Duty Filtration for Nickel, Gold & Copper Mining
Applications: tailings dewatering, mineral concentrate filtration, process water recovery.
Wear-resistant designs for high-solids, abrasive slurries.
Large capacity models (up to 800 m²) for high-volume operations.
3.Construction & Infrastructure--Sludge Dewatering for Tunneling, Dredging & Construction Sites
Supporting Philippine infrastructure projects (tunneling, subway, bridge construction).
Bentonite slurry treatment for diaphragm wall and pile foundation work.
Dredging sludge dewatering for river rehabilitation and land reclamation.
4.Industrial Wastewater Treatment--Custom Solutions for Manufacturing & Industrial Parks
Applications: textile dye wastewater, electroplating effluent, chemical processing.
Compact designs suitable for space-constrained factories.
1. Low Cake Moisture: Reduces disposal costs and improves recovery.
2. Energy Efficient: Up to 20% less energy consumption vs conventional models.
3. Long-Lasting Filter Cloth: Special weave design for extended service life.
4. PLC Automation: Fully automated operation with HMI touchscreen
Why Choose Dazhang Filter Press
As leading filter press manufacturer and supplier with 20 years history in China, we have professional team, rich experience and full service system. We provide turkey customized solution to meet your specific needs.
Part of Product Showcase

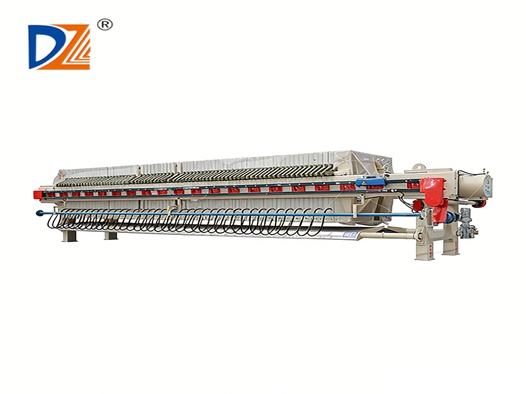

Automatic Membrane Filter Press: 10-500 m² filtration area, PLC control, cake moisture as low as 15-20%, suitable for Mining, high-volume industrial applications.

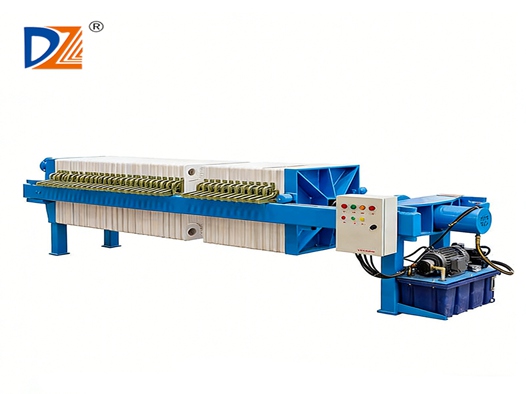

Plate & Frame Filter Press: 5-400 m² area, manual or semi-automatic, cost-effective, suitable for Food processing, wastewater treatment, etc.
Stainless Steel Filter Press: AISI 304/316L, sanitary design, 5-150 m² area, suitable for food, beverage, pharmaceutical.
| Model | Filter press(m2) | Plate size(mm) | Cake tdickness(mm) | Filter chamber volume(L) | Plate NO(pcs) | Filtration pressure(Mpa) | Motor power(Kw) | Weight(Kg) | Dimensions L*W*H(mm) | Foundation Size(mm) | |||
| L | B | D | H | ||||||||||
X Y4/450-30U |
4 | 500*500 | 30 | 60 | 9 | ≥0.6 | 2.2 | 890 | 2230*800*900 | 1550 | 390 | 700 | 560 |
| XY5/450-30U |
5 | 500*500 | 30 | 79 | 12 | ≥0.6 | 2.2 | 920 | 2630*800*900 | 1800 | 390 | 700 | 560 |
| XY6/630-30U |
6 | 700*700 | 30 | 95 | 7 | ≥0.6 | 2.2 | 1450 | 2200*1050*1150 | 1490 | 560 | 1110 | 700 |
| XY8/630-30U |
8 | 700*700 | 30 | 119 | 9 | ≥0.6 | 2.2 | 1500 | 2400*1050*1150 | 1640 | 560 | 1110 | 700 |
| XY10/630-30U |
10 | 700*700 | 30 | 154 | 12 | ≥0.6 | 2.2 | 1610 | 2540*1050*1150 | 1890 | 560 | 1110 | 700 |
| XY12/630-30U |
12 | 700*700 | 30 | 178 | 14 | ≥0.6 | 2.2 | 1720 | 3130*1050*1150 | 2140 | 560 | 1110 | 700 |
| XY15/630-30U |
15 | 700*700 | 30 | 226 | 18 | ≥0.6 | 2.2 | 1880 | 3550*1050*1150 | 2490 | 560 | 1110 | 700 |
| XY10/870-30U |
10 | 870*870 | 30 | 154 | 7 | ≥0.6 | 2.2 | 1940 | 2720*1270*1300 | 1580 | 700 | 1380 | 785 |
| XY20/870-30U |
20 | 870*870 | 30 | 307 | 15 | ≥0.6 | 2.2 | 2230 | 3500*1270*1300 | 2430 | 700 | 1380 | 785 |
| XY18/1000-30U |
18 | 1000*1000 | 30 | 270 | 10 | ≥0.6 | 4 | 1850 | 3470*1400*1400 | 2320 | 780 | 1480 | 1000 |
| XY35/1000-30U |
35 | 1000*1000 | 30 | 525 | 20 | ≥0.6 | 4 | 2540 | 5470*1400*1400 | 3620 | 780 | 1480 | 1000 |
| XY28/1250-30U |
28 | 1250*1250 | 30 | 420 | 10 | ≥0.6 | 4 | 3600 | 4110*1770*1600 | 3220 | 850 | 1740 | 1250 |
| XY55/1250-30U |
55 | 1250*1250 | 30 | 833 | 20 | ≥0.6 | 4 | 3600 | 6510*1770*1600 | 4320 | 850 | 1740 | 1250 |
| Model | Filter press(m2) | Plate size(mm) | Cake tdickness(mm) | Filter chamber volume(L) | Plate NO(pcs) | Filtration pressure(Mpa) | Motor power(Kw) | Weight(Kg) | Dimensions L*W*H(mm) | Foundation Size(mm) | |||
| L | B | D | H | ||||||||||
| XZ30/870-30U |
30 | 870*870(Or)800*800 | 30 | 460 | 23 | ≥0.6 | 2.2 | 2680 | 3180*1400*1230 | 2360 | 700 | 1380 | 785 |
| XZ40/870-30U |
40 | 870*870(Or)800*800 | 30 | 595 | 30 | ≥0.6 | 2.2 | 3050 | 3570*1400*1230 | 2750 | 700 | 1380 | 785 |
| XZ50/870-30U |
50 | 870*870(Or)800*800 | 30 | 748 | 38 | ≥0.6 | 2.2 | 3456 | 4110*1400*1230 | 3290 | 700 | 1380 | 785 |
| XZ60/870-30U |
60 | 870*870(Or)800*800 | 30 | 902 | 46 | ≥0.6 | 2.2 | 4003 | 4550*1400*1230 | 3730 | 700 | 1380 | 785 |
| XZ70/870-30U |
70 | 870*870(Or)800*800 | 30 | 1056 | 54 | ≥0.6 | 2.2 | 4584 | 4990*1400*1230 | 4170 | 700 | 1380 | 785 |
| XZ80/870-30U |
80 | 870*870(Or)800*800 | 30 | 1210 | 62 | ≥0.6 | 2.2 | 5082 | 5430*1400*1230 | 4610 | 700 | 1380 | 785 |
| XZ50/870-30U |
50 | 1000*1000 | 30 | 736 | 28 | ≥0.6 | 4 | 4128 | 4040*1500*1400 | 3120 | 780 | 1480 | 870 |
| XZ60/870-30U |
60 | 1000*1000 | 30 | 889 | 34 | ≥0.6 | 4 | 4636 | 4460*1500*1400 | 3480 | 780 | 1480 | 870 |
| XZ70/870-30U |
70 | 1000*1000 | 30 | 1041 | 40 | ≥0.6 | 4 | 5143 | 4760*1500*1400 | 3840 | 780 | 1480 | 870 |
| XZ80/870-30U |
80 | 1000*1000 | 30 | 1193 | 46 | ≥0.6 | 4 | 5651 | 5120*1500*1400 | 4200 | 780 | 1480 | 870 |
| XZ100/870-30U |
100 | 1000*1000 | 30 | 1475 | 57 | ≥0.6 | 4 | 6628 | 5780*1500*1400 | 4860 | 780 | 1480 | 870 |
| XZ120/870-30U |
120 | 1000*1000 | 30 | 1777 | 69 | ≥0.6 | 4 | 7644 | 6500*1500*1400 | 5580 | 780 | 1480 | 870 |
| XZ100/1250-30U |
100 | 1250*1250 | 30 | 1468 | 36 | ≥0.6 | 4 | 8307 | 5020*1800*1600 | 3970 | 850 | 1740 | 995 |
| XZ120/1250-30U |
120 | 1250*1250 | 30 | 1746 | 43 | ≥0.6 | 4 | 9308 | 5470*1800*1600</td%3 | ||||
As leading filter press manufacturer and supplier with 20 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.
After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.
Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.
We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
Please feel free to fill in the following form to get product information,price,service and other supports. You can also inquiry online or email us to dz@filterpress-china.cn ,we will reply to you within 24 hours as soon as possible.Thank You!
