Filter Press фильтр пресс

  • Filter Area

    3-1000 ㎡

  • Models

    full models

  • Price

    factory price
Leave Message For Price Inquiry Online

Product Description

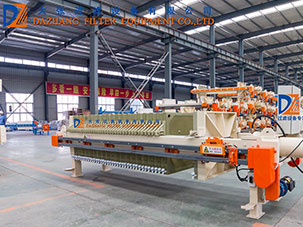

Filter press / фильтр пресс is a kind of industial machine used for solid-liquid separation, sludge dewatering and wastewater treatment in many industries, such as mining industry, coal, concrete plant, metallurgy, chemical industry, food industry, printing and dyeing, tannery, electroplating, ceramics, and other industries. Usually, we have two types of filter presses for sale: plate and frame filter press and belt filter press. If you need, you can also visit our Russian website for reference.

As leading filter press manufacturer and supplier with 17 years history in China, we have over 10 types of filter presses for sale, mainly including chamber filter press, membrane filter press, belt filter press, stainless steel filter press, screw press, etc. We have small, medium and large models for choice, meeting your needs.

Main application fields and materials can be processed:

Industrial Wastewater Treatment: Municipal sewage, electroplating wastewater, river sludge, oil field sludge, artificial sand wastewater, printing and dyeing wastewater, tannery wastewater, leather wastewater, papermaking wastewater, iron and steel wastewater, etc.

Mining Industry: Coal, sand, gold ore, iron ore, copper ore, zinc, cobalt ore, non-ferrous metal recovery, slag, tailings treatment, kaolin, ceramics, etc.

Chemical Industry: Calcium carbonate, titanium dioxide, white carbon black, petrochemical industry, lithium battery, gas cleaning, etc.

Smelting industry:Electrolytic copper, electrolytic zinc, electrolytic manganese, nickel, vanadium titanium, alumina, etc.

Food Industry: Syrup, sugar, beer, wine, oil, juice, etc.

Pharmaceutical industry: Widely used in fermentation broth, enzyme preparations, sewage treatment and other sections.

In addition to the mentioned above, filter press can also be used in many other industries for kinds of solid-liquid separation and dewatering needs. If you have any needs, please feel free to inquiry us for professional solution.

Our filter press has been exported to over 120 countries, we have many successful projects in Russia, Uzbekistan, Kazakhstan, etc.


Advantages of Filter Press

Manual and hydraulic type for choice, meeting small, medium and large production needs.

Compact structure, CE &ISO qualified, stable performance, high efficiency and low operating cost.

Long service life, wide application. Reduce moisture content to meet standard.

Factory-direct sale, fast delivery and shipping, full service.

Greatly reduce the moisture content, save drying costs and improve production yield.

High-pressure press will greatly shorten the entire filtration cycle.

It can save operation power consumption,saving costs.

Click to expand to view the data
Technical Parameters
Model Filter press(m2) Plate size(mm) Cake tdickness(mm) Filter chamber volume(L) Plate NO(pcs) Filtration pressure(Mpa) Motor power(Kw) Weight(Kg) Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
XY4/450-30U 4 500*500 30 60 9 ≥0.6 2.2 890 2230*800*900 1550 390 700 560
XY5/450-30U 5 500*500 30 79 12 ≥0.6 2.2 920 2630*800*900 1800 390 700 560
XY6/630-30U 6 700*700 30 95 7 ≥0.6 2.2 1450 2200*1050*1150 1490 560 1110 700
XY8/630-30U 8 700*700 30 119 9 ≥0.6 2.2 1500 2400*1050*1150 1640 560 1110 700
XY10/630-30U 10 700*700 30 154 12 ≥0.6 2.2 1610 2540*1050*1150 1890 560 1110 700
XY12/630-30U 12 700*700 30 178 14 ≥0.6 2.2 1720 3130*1050*1150 2140 560 1110 700
XY15/630-30U 15 700*700 30 226 18 ≥0.6 2.2 1880 3550*1050*1150 2490 560 1110 700
XY10/870-30U 10 870*870 30 154 7 ≥0.6 2.2 1940 2720*1270*1300 1580 700 1380 785
XY20/870-30U 20 870*870 30 307 15 ≥0.6 2.2 2230 3500*1270*1300 2430 700 1380 785
XY18/1000-30U 18 1000*1000 30 270 10 ≥0.6 4 1850 3470*1400*1400 2320 780 1480 1000
XY35/1000-30U 35 1000*1000 30 525 20 ≥0.6 4 2540 5470*1400*1400 3620 780 1480 1000
XY28/1250-30U 28 1250*1250 30 420 10 ≥0.6 4 3600 4110*1770*1600 3220 850 1740 1250
XY55/1250-30U 55 1250*1250 30 833 20 ≥0.6 4 3600 6510*1770*1600 4320 850 1740 1250
Model Filter press(m2) Plate size(mm) Cake tdickness(mm) Filter chamber volume(L) Plate NO(pcs) Filtration pressure(Mpa) Motor power(Kw) Weight(Kg) Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
XZ30/870-30U 30 870*870(Or)800*800 30 460 23 ≥0.6 2.2 2680 3180*1400*1230 2360 700 1380 785
XZ40/870-30U 40 870*870(Or)800*800 30 595 30 ≥0.6 2.2 3050 3570*1400*1230 2750 700 1380 785
XZ50/870-30U 50 870*870(Or)800*800 30 748 38 ≥0.6 2.2 3456 4110*1400*1230 3290 700 1380 785
XZ60/870-30U 60 870*870(Or)800*800 30 902 46 ≥0.6 2.2 4003 4550*1400*1230 3730 700 1380 785
XZ70/870-30U 70 870*870(Or)800*800 30 1056 54 ≥0.6 2.2 4584 4990*1400*1230 4170 700 1380 785
XZ80/870-30U 80 870*870(Or)800*800 30 1210 62 ≥0.6 2.2 5082 5430*1400*1230 4610 700 1380 785
XZ50/870-30U 50 1000*1000 30 736 28 ≥0.6 4 4128 4040*1500*1400 3120 780 1480 870
XZ60/870-30U 60 1000*1000 30 889 34 ≥0.6 4 4636 4460*1500*1400 3480 780 1480 870
XZ70/870-30U 70 1000*1000 30 1041 40 ≥0.6 4 5143 4760*1500*1400 3840 780 1480 870
XZ80/870-30U 80 1000*1000 30 1193 46 ≥0.6 4 5651 5120*1500*1400 4200 780 1480 870
XZ100/870-30U 100 1000*1000 30 1475 57 ≥0.6 4 6628 5780*1500*1400 4860 780 1480 870
XZ120/870-30U 120 1000*1000 30 1777 69 ≥0.6 4 7644 6500*1500*1400 5580 780 1480 870
XZ100/1250-30U 100 1250*1250 30 1468 36 ≥0.6 4 8307 5020*1800*1600 3970 850 1740 995
XZ120/1250-30U 120 1250*1250 30 1746 43 ≥0.6 4 9308 5470*1800*1600</td%3


Full Service System

As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.

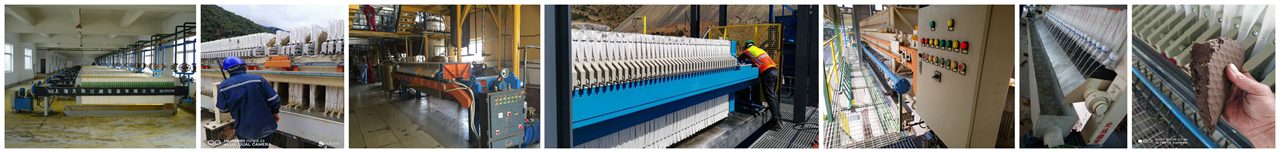

Successful cases
